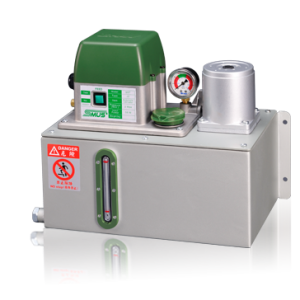

Piston Lubricator SST – J2 Series

sumsLogo

FEATURESimgmProJ2

Aluminum Body
Enlarged robust aluminum cover
Enhance heat dissipation to prolong product life

Feed Button
User can discharge more lubricant when necessary
Embedded spark reducer can upgrade reliability
Embossed button help easier operation

Moter
Durable Induction Motor



SPECIFICATIONS

simgProB2_1 simgProB2_2 simgProJ2_3

Model SST J2
Voltage (single phase) 110V or 220V
Consumption Power(W) 56
Output Power (W) 25
Capacity of Terminal Output(A) 0.3(Float Switch) 5(Pressure Switch)
Lubrication time Cooperate with PLC control system
Intermittent Time Cooperate with PLC control system
Direction of Output Left
Output Bore Ø4 or Ø6
Max. Output Pressure (MPa) 2
Output Volume (cc/mim) 150
Pressure Release Device O
Float Switch O
Pressure Switch (MPa) 1.2-0.9(NC)
Pressure Gauge O
Tank Capacity 6L/ 8L

DIAGRAM

imgD
