Work sensors for CNC Machine tool

Work sensors for CNC Machine tool
Unique design and high resistance to vibration

  • For work piece dimensional measurement,centering and positioning

Overview

Mounted on CNC machine tools or robotsMounted on CNC machine tools or robots, it is used for positioning, dimension detection and centering of a work.

High accuracy signal can be obtained for CNC or PC input by simply contacting a work.



Specification

Repeatability 0.001mm (Except K3MA for robots )
Operating speed 100~200mm/min (X,Y direction,finger length 40mm)
Contact life time 3 million

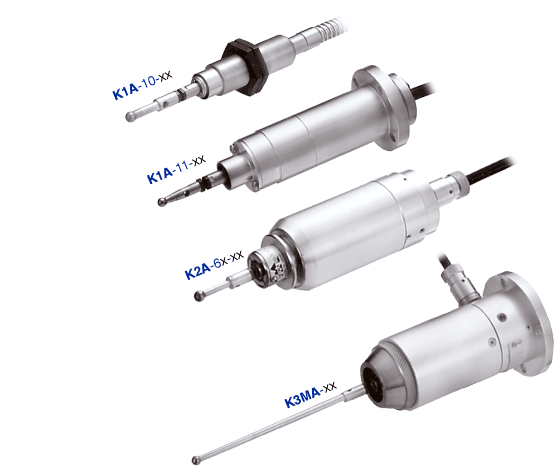

Products

Products

Product name No.of signals Detecting direction Stroke Pretravel Contact
force
K1A-10-xx
K1A-11-xx
1-direction 1-direction 3mm 0.2mm 2N
K2A-6x-xx 3-direction 3-direction Z=4mm
X=±8mm
Z=0.1mm
X=0.6mm
Z=2N
X=1N
K3MA-xx All-direction
(for robots)
All-direction Z=4mm
X,Y=±8mm
Z=0.1mm
X,Y=0.4mm
Z=3N
X,Y=1N
